Highbay Commercial Industrial Lighting Supermarket Workshop Ufo Led High Bay Light 100w 150w 200w HighBay Lamp
Features:
※ Mainly for industry lighting.
※ High quality Driver,UL CE Cer.
※ Wide input voltage AC180-265V or dimmable
※ Best heat sink to get the best heat dissipation,Thermoelectric separation
※ Easy to install and operate
※ Energy saving, Instant start, NO flickering, NO humming, long service life.
Applications:
※ Applied in industrial factories, production workshops, supermarkets, sports and entertainment venues, warehouses, etc.
Product Specifications:
| Product Name | 200W LED High Bay Light |
| Model number | DS-UL-200 |
| Power | 200W +/-5% |
| Input voltage | 180-265VAC 50/60Hz |
| LED Driver | LFD CE ENEC C-TICK Driver |
| Lumen | 15000-19000LM |
| Lumen efficiency | 150-190LM/W |
| CRI | >80 or>70 |
| Numbers of LED | 960pcs2835 |
| Color | 3000k+5000k |
| CCT channel | 3000k/4000k/5000k |
| Power set | 100%-75%-50% |
| Dimming | 0-10v/Smart Module |
| Motion sensor | 4-9m Sensing Range |
| Mounting height | 4-6m |
| PF | >0.95 |
| THD | <15%（full load) |
| Surge Capability (L-N) | 6kv |
| Surge Capability (LN-GND) | 6kv |
| Angle | 110° |
| Housing color | Black |
| Material | Aluminum+PC |
| IP | IP65 (Indoor using) |
| Lifespan | >50,000H （tc<85℃） |
| Working Temperature | -25°C~+45°C |
| Operating Humidity | <90% |
| Storage Temperature | -35°C~+80°C |
| Input voltage（AC) | 180Volt 230Volt 240Volt 265Volt |
| Input current at 100% | 1.2A 0.91A 0.87A 0.8A |
| Input power at 100%: | 200W 200W 200W 200W |
| Package Carton | 460*460*135mm |
| Dimension | D405*115mm |
| Gross Weight | 3.2kg |
| Net Weight | 2.4kg |
| Mounting | Suspension installation |
Photometric diagrams:
Spectrum:

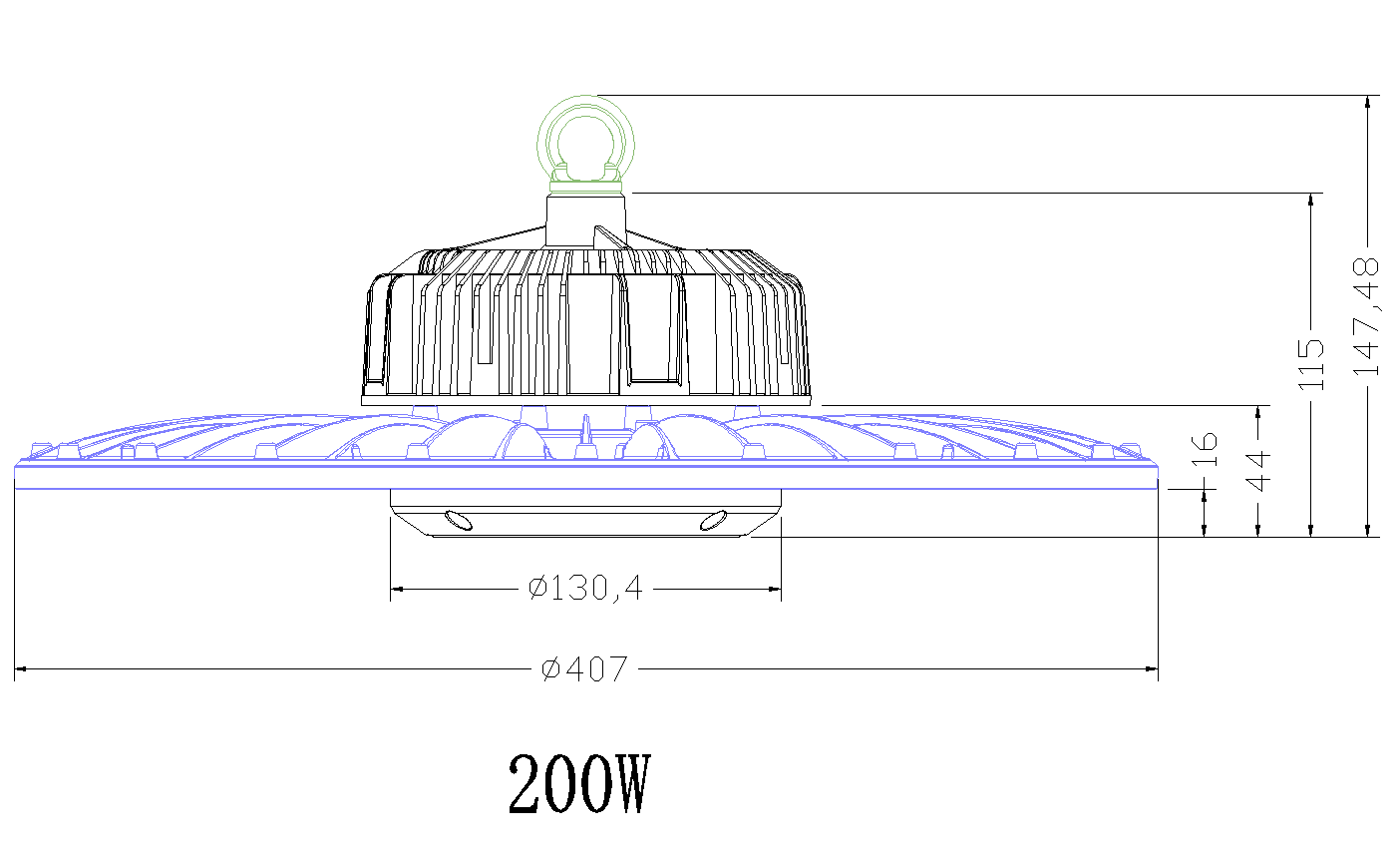

Size:
Use Micro Wave Function
The number of loads on the circuit breaker：
Input connection line：
LED UFO HIGH BAY LIGHT
