Features:
● High efficiency Driver,UL CE ENEC Cer,up to 93%.
● LED lamps suitable for simple (retrofit) replacement of 200w HID lamps.
● Temperature range:﹣20 ℃ to 45℃.
● Suitable for indoor application in open luminaires.
● Projected lifespan of 50,000 hrs.
● Provide optional 30, 60, and 90 degree light output angles, transparent striped PC face mask.
● Built in serial wires, suitable for serial connection of lighting fixtures, with a maximum power of 1200W.
● 3000K, 4000K, and 5000K can be set through an external switch.
Applications:
Industrial plants, production workshops, supermarkets, sports and entertainment venues, and warehouses.
Parameter:
| Product Name | 160W LED High Bay Tube |
| Model number | DS-T12-160 |
| Power | 160W +/-5% |
| Input voltage | 180-265VAC 50/60Hz |
| LED Driver | LFD CE ENEC C-TICK Driver |
| Lumen | 20000-24000LM |
| Lumen efficiency | 130-150LM/W |
| CRI | >80 |
| Numbers of LED | 432*2pcs 2835 |
| Color | 3000k+5000k |
| CCT change | 3000k-4000k-5000k |
| Dimming | 0-10v/Smart Module |
| Motion sensor | 4-9m Sensing Range |
| Mounting height | 4-6m |
| PF | >0.95 |
| THD | <15% (full load) |
| Surge Capability (L-N) | 10kv |
| Surge Capability (LN-GND) | 6kv |
| Angle | 110° |
| Housing color | Siverly |
| Material | Aluminum+PC |
| IP | IP65 (Indoor using) |
| Lifespan | >50,000H （tc<85℃） |
| Working Temperature | -25°C~+45°C |
| Operating Humidity | <90% |
| Storage Temperature | -35°C~+80°C |
| Input voltage（AC) | 180Volt 230Volt 240Volt 265Volt |
| Input current at 100% | 0.88A 0.69A 0.66A 0.6A |
| Input power at 100%: | 160W 160W 160W 160W |
| Package Carton | 1255*250*210mm |
| Dimension | 1200*150*62mm |
| Gross Weight | 9.5kg |
| Net Weight | 11kg (2pcs) |
| Mounting | Suspension/Ceiling installation |
Photometric diagrams:
Spectrum:
Size:
Use Micro Wave Function:
The number of loads on the circuit breaker
Input connection line

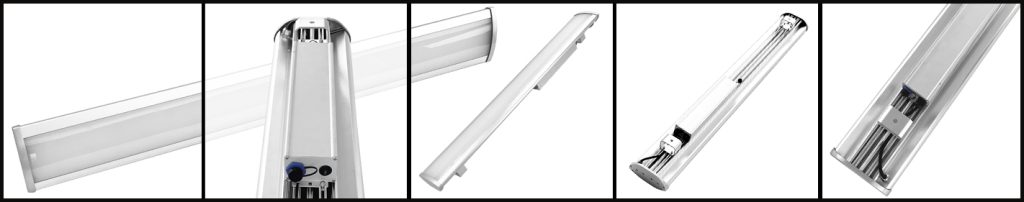

LED HIGH BAY TUBE
