DS-FTD-20W-34
The appearance design of diffuse reflection tube lights is diverse and can match different styles of interior decoration.
Features:
※ The diffuse reflection tube lamp supports dimming function, which can adjust the brightness according to the needs and adapt to the needs of different occasions.
※ High quality Driver, CE Cer/NXP chip.
※ Due to the scattering of light from multiple angles, diffuse reflection tube lights can effectively reduce shadows on objects and improve the brightness of the space.
※ Best heat sink to get the best heat dissipation.
※ Diffuse reflector tube lights can produce uniform and soft light, reducing glaring direct light and making indoor environments more comfortable.
※ Energy saving, Instant start, NO flickering, NO humming, long service life.
Applications:

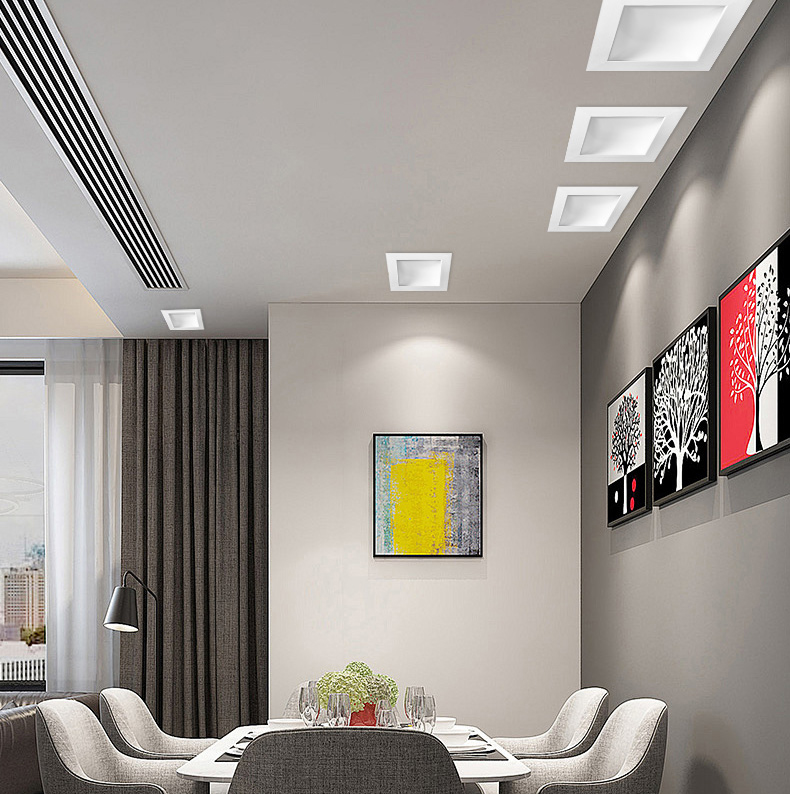

※ Applied in hospital,Corridors, homes, offices, meeting rooms, shops, hotels, etc.
Product Specifications:
| Product Name | 20W LED High Light |
| Model number | DS-FTD-20W-34 |
| Power | 20W +/-5% |
| Input voltage | 220-240VAC 50/60Hz |
| LED Driver | CM CE Driver |
| Lumen | 1400LM |
| Lumen efficiency | 70LM/W |
| CRI | >80 |
| Numbers of LED | 96pcs2835 |
| Color | 3000-4200k |
| CCT channel | 3000k-3500k-4200k |
| Dimming | trailing edge dimmers |
| PF | >0.9 |
| THD | <40% |
| Angle | 110° |
| Housing color | White |
| Material | Aluminum |
| IP | IP20 (Indoor using) |
| Lifespan | >25,000H |
| Working Temperature | -25°C~+40°C |
| Operating Humidity | <90% |
| Storage Temperature | -35°C~+80°C |
| Input voltage（AC) | 230Volt |
| Input current at 100% | 0.1A |
| Input power at 100%: | 20W |
| Package Carton | 460*325*470mm |
| Dimension | 180*180*52mm |
| Cut hole | 165*165mm |
| Gross Weight | 8.9kg |
| Net Weight | 0.39kg |
| Mounting | Ceiling mounted |
Photometric diagrams:
Spectrum:
Dimensions:
Diffuse eflection
LED DOWN LIGHT
