Features:

● Availble in different color shades of white.

● LED lamps suitable for simple (retrofit) replacement of 40w Incandescent lamps.

● System efficiency up to 92%,Low temperature rise.

● Suitable for indoor application in open luminaires.

● Can provide built-in lithium battery emergency system, 1.5-3H for selection.

● PC cover with strip, frosted for options, strip 91%, frosted 84%.

● Built in serial wires, suitable for serial connection of lighting fixtures, with a maximum power of 1500W.

● In the case of a single lamp, select a three color temperature of 3000/4000/5000K through an external switch

Application:

Factories, workshops, warehouses, corridors, sports halls, exhibition halls

Product Specifications:

Product Name	20W LED TRI-PROOF Light
Model number	DS-B-20-06
Power	20W +/-5%
Input voltage	220-240VAC 50/60Hz
LED Driver	CE TUV ENEC UKCE Driver  OSRAM/LFD/ Non isolated
LED Chip	OSRAM 2835
Lumen	2800-3000LM
Lumen efficiency	136LM/W
CRI	>80
SDCM	<4
Color	3000k-6000k
PF	>0.9
THD	<20%
Dimming	0-10v/dali
Sensor	Built in Microwave induction
Surge Capability (L-N)	6kv
Surge Capability (LN-GND)	6kv
Angle	120°
Housing color	Light gray
Material	PC+Metallic iron
IP	IP65 (Indoor using)
Lifespan	>50,000H  at 25°C
Working Temperature	-25°C~+40°C
Operating Humidity	<90%
Storage Temperature	-35°C~+80°C
Input voltage（AC)	180Volt   230Volt   265Volt
Input current at 100%	117ma    95ma     84ma
Input power at 100%:	20W       20W      20W
Package Carton	580*320*290mm
Dimension	600*95*83mm
Gross Weight	13.6kg/9pcs
Net Weight	12kg
Mounting	Surface mounted, suspended

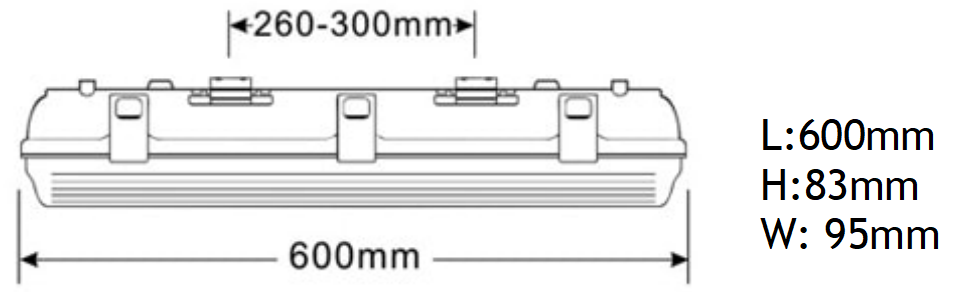

Dimension:

Photometric diagrams:

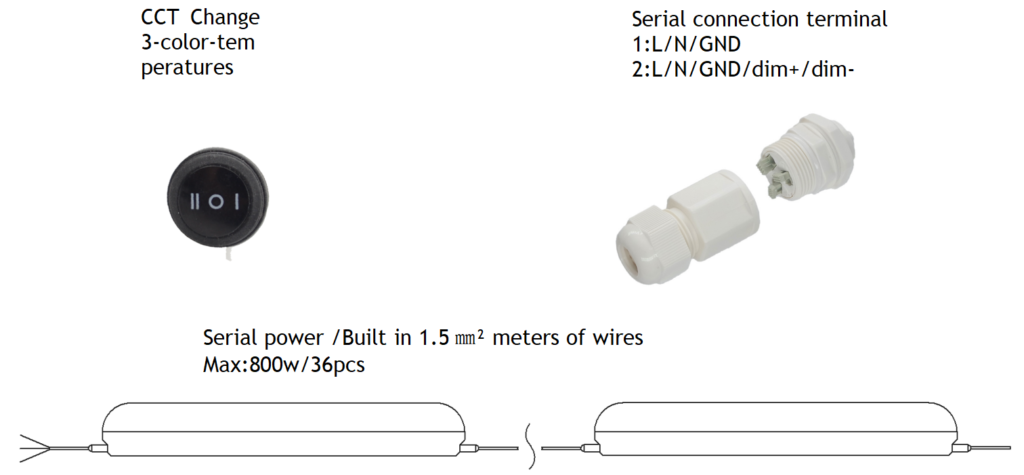

option:

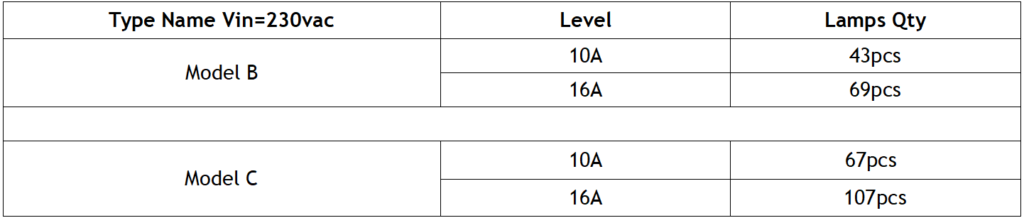

The number of loads on the circuit breaker

Installation Options

LED TRI-PROOF LIGHT-IP65
